Introduction

Your car's AC system seems like it should be simple. Refrigerant flows, the compressor pumps, cold air blows.

But behind every working AC is a network of electrical components making split-second decisions: Should the compressor engage? Is the refrigerant pressure safe? Is the blower getting power?

When one of these electrical parts fails, the symptoms can be confusing. The compressor might be perfect. The refrigerant fully charged. Yet your AC simply won't work.

Or it works randomly—fine one moment, dead the next, with no pattern you can identify.

Here's the good news: electrical AC failures are usually cheaper to fix than mechanical breakdowns. A $20 relay can cause the exact same "no cold air" symptom as a $1,200 compressor replacement.

The challenge? Electrical problems require methodical testing. You can't just guess which component failed and start swapping parts.

This guide will show you how to diagnose the most common electrical AC problems, what realistic repairs look like, and when you need professional help versus a simple DIY fix.

What Electrical AC Problems Look Like

Before you start testing components, you need to recognize the patterns that point to electrical failure rather than mechanical or refrigerant issues.

If you're dealing with an electrical problem, you might notice:

• AC button does nothing when you press it
• No compressor clutch engagement—no click, and the pulley center doesn't spin
• Blower motor is completely dead, or only works on certain speeds
• AC works sometimes but not others, with no predictable pattern
• AC dashboard light comes on, but nothing happens after that
• Compressor engages for a split second, then immediately shuts off
• Compressor cycles on and off every few seconds
• AC only works after you've started the car multiple times

The defining characteristic of electrical failures: they're binary. Either the system works or it doesn't.

You rarely get "weak cooling" or "gradually declining performance" from electrical issues. Those symptoms point to refrigerant loss or mechanical wear.

The Electrical Components That Control Your AC

Understanding what each part does helps you figure out where the problem actually lives.

AC Compressor Clutch

The electromagnetic clutch is what engages and disengages the compressor. When you press the AC button and conditions are safe, the clutch receives electrical power and mechanically locks the compressor pulley to the compressor shaft.

What happens when it fails: The compressor won't engage even if refrigerant levels are good and system pressures are normal.

AC Fuse

A blade-style fuse—usually between 10 and 30 amps—protects the AC clutch circuit. If there's a short circuit or the system draws too much current, the fuse blows to prevent damage.

What happens when it fails: Total AC failure. No power to anything. Usually instant and complete.

AC Relay

The relay acts as an electrical switch controlled by your AC control module. When you press the AC button, the module activates the relay, which then sends power to the compressor clutch.

What happens when it fails: Pressing the AC button does nothing. The relay might fail open (no connection ever made) or stick closed (compressor always tries to run).

Pressure Switches

Two switches protect your AC system from operating under unsafe conditions:

Low-pressure switch: Prevents the compressor from running when refrigerant is too low. This protects the compressor from running without proper lubrication.

High-pressure switch: Shuts off the compressor if pressure climbs dangerously high. This prevents damage from overheating or refrigerant overcharge.

What happens when they fail: The AC won't engage even when refrigerant levels are correct. Or, in rare cases, the compressor runs when it shouldn't.

Blower Motor and Resistor

The blower motor is what pushes air through your vents. The blower motor resistor controls different fan speeds.

What happens when they fail: You get no airflow at all. Or the blower only works on the highest speed setting (resistor failure). Or the motor runs but produces very weak airflow.

Temperature Sensors and Control Module

Modern cars use sensors to monitor evaporator temperature and cabin temperature. The AC control module processes these sensor inputs and controls when the compressor cycles on and off.

What happens when they fail: Erratic AC behavior. Strange compressor cycling patterns. Or complete failure despite all mechanical components being fine.

How to Diagnose AC Electrical Problems

Electrical diagnosis isn't guesswork. It's a logical sequence that moves from easiest checks to more complex testing.

Step 1: Check the AC Fuse First

This should always be your first step.

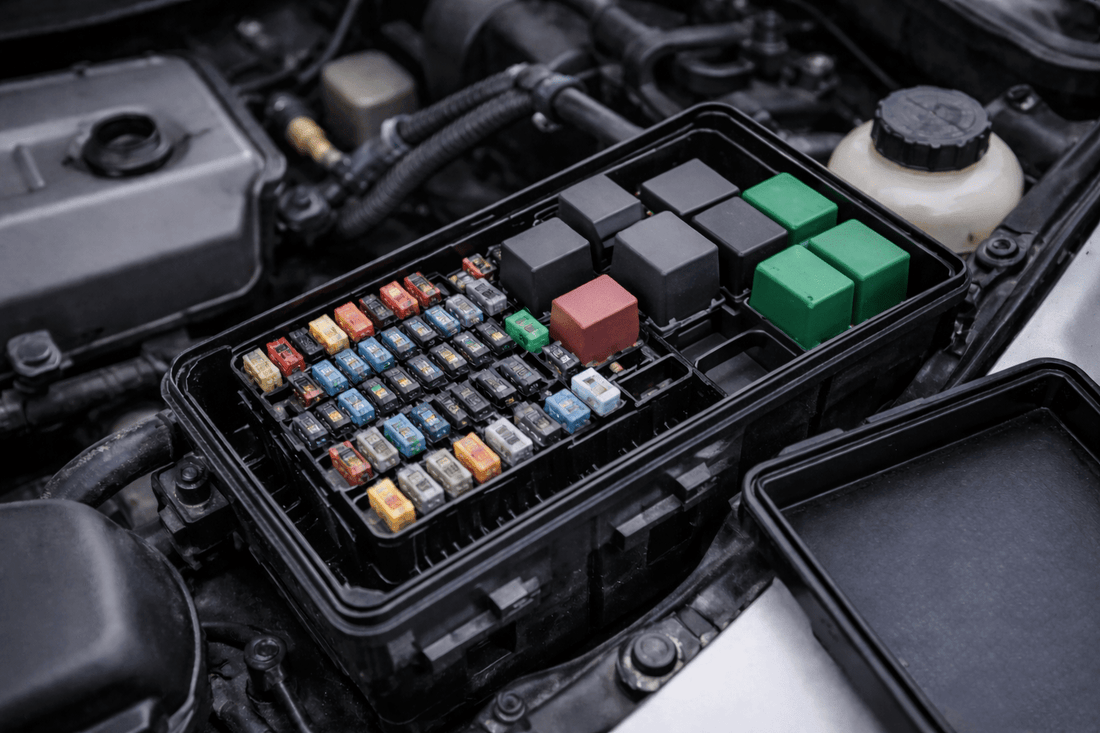

Find your vehicle's fuse panel. It's usually under the dashboard or in the engine bay. Your owner's manual shows which fuse protects the AC—often labeled "A/C," "HVAC," or "COMP."

1. Pull the fuse and look at it. The metal strip inside should be continuous and unbroken.
2. For a more reliable check, use a multimeter or test light to verify continuity.
3. If the fuse is blown, replace it with the exact same amperage rating.

Important: If the new fuse blows immediately after replacement, you have a short circuit somewhere in the AC electrical system. Don't keep replacing fuses. You need professional diagnosis to locate the short before you cause more damage.

Step 2: Test the AC Relay

Relays are simple. They either work or they don't.

1. Locate the AC relay in your fuse and relay box (the owner's manual or box diagram shows exactly where)
2. Start the engine and press the AC button
3. Listen carefully for the relay clicking
4. If you hear a click but nothing happens afterward, the relay may be faulty internally
5. Try swapping it with an identical relay from another circuit—many vehicles use the same relay design for multiple systems
6. If the AC works with a different relay installed, you've found your problem

Many auto parts stores will test relays for free if you bring them in.

Step 3: Watch the Compressor Clutch

With the engine running and AC turned on:

1. Look at the compressor. The outer pulley always spins with the serpentine belt.
2. The center section should engage with an audible click and start spinning with the pulley.
3. If you hear the click but the center doesn't spin, the clutch is mechanically stuck or damaged.
4. If you hear no click at all, the clutch isn't receiving electrical power.

Testing for power at the clutch (requires a test light or multimeter):

1. Find the electrical connector at the compressor clutch
2. With the AC on and engine running, test for 12 volts at the connector
3. If there's power but the clutch won't engage, the clutch coil has failed electrically
4. If there's no power, the problem is upstream—relay, pressure switch, wiring, or control module

Step 4: Check Pressure Switches (Requires Caution)

This step gets trickier because you need to know whether the system has refrigerant first.

Low-pressure switch testing:

1. If your system is low on refrigerant, the low-pressure switch is supposed to prevent compressor engagement. That's normal protection, not a failed switch.
2. With adequate refrigerant confirmed, you can temporarily bypass the switch with a jumper wire to test whether the compressor engages
3. Never leave a pressure switch bypassed permanently. It protects the compressor from catastrophic damage.

High-pressure switch testing:

1. This switch typically only activates when the system is overcharged or the condenser is blocked
2. It resets automatically when pressure drops back to safe levels
3. Proper testing requires AC pressure gauges to monitor actual system pressures

Step 5: Test the Blower Motor

If the compressor is working but you're getting no airflow:

1. Turn the fan speed to high with the AC on
2. Listen for the blower motor running—you can often hear it from inside the cabin
3. Check the blower motor fuse first
4. If there's power to the motor but it doesn't run, the motor itself has failed
5. If the blower only works on the highest speed setting, the blower motor resistor is likely the problem

When You Need Professional Diagnosis

Electrical troubleshooting gets complex when:

• Multiple components appear to be involved
• You see visible wiring damage or corrosion at connectors
• The AC control module might be faulty
• You need specialized scan tools to read diagnostic trouble codes
• The problem is intermittent and nearly impossible to reproduce consistently

Most shops charge $75 to $150 for electrical diagnosis. This typically includes circuit testing, component verification, and reading computer codes.

Repair Costs and Your Options

Once you know what's actually broken, repair costs vary based on the specific component and whether you're doing the work yourself or hiring a professional.

Fuse Replacement

Cost: $5 to $15 DIY | $50 to $100 at a shop
Difficulty: Easy
Time: 5 minutes

Replacing a blown fuse is the simplest possible repair. But understanding why it blew matters more than the replacement itself.

If the new fuse blows immediately or repeatedly, you have an underlying short circuit that needs diagnosis. Don't keep installing fuses without finding the root cause.

Relay Replacement

Cost: $15 to $40 DIY | $75 to $150 at a shop
Difficulty: Easy
Time: 10 minutes

Relays are cheap and simple to replace. They plug directly into the fuse box. Make sure you get the correct part number for your specific vehicle.

Compressor Clutch Coil Replacement

Cost: $100 to $300 DIY | $250 to $500 professionally
Difficulty: Moderate
Time: 1 to 3 hours

If the compressor itself still pumps correctly, you can replace just the clutch coil and avoid full compressor replacement. This requires removing the clutch assembly from the front of the compressor, which can be challenging in tight engine bays.

Pressure Switch Replacement

Cost: $50 to $150 DIY | $150 to $300 professionally
Difficulty: Moderate
Time: 30 minutes to 1 hour

Pressure switches thread into the AC refrigerant lines. Replacement requires evacuating the refrigerant safely, installing the new switch, and recharging the system afterward.

Most DIYers don't have the equipment for this repair.

Blower Motor Replacement

Cost: $100 to $250 DIY | $200 to $500 professionally
Difficulty: Moderate to difficult
Time: 1 to 3 hours

Blower motor location varies dramatically between vehicles. Some are accessible from under the dashboard (difficult and cramped). Others can be reached from under the hood (much easier).

Removal typically requires working in very tight spaces with limited visibility.

Blower Motor Resistor Replacement

Cost: $25 to $75 DIY | $100 to $200 professionally
Difficulty: Easy to moderate
Time: 30 minutes to 1 hour

The resistor is usually located near the blower motor or inside the HVAC housing. It's more accessible than the motor itself and relatively simple to swap out.

Wiring Repair

Cost: $150 to $500+ professionally
Difficulty: Advanced
Time: Highly variable

Damaged wiring, corroded connections, or electrical shorts require careful diagnosis and precise repair work. Costs depend entirely on the extent of the damage and how accessible the wiring is.

AC Control Module Replacement

Cost: $150 to $400 DIY | $300 to $800 professionally
Difficulty: Moderate
Time: 1 to 2 hours

The electronic module that manages AC operation can fail, though this is less common than individual component failures. Replacement sometimes requires programming or system calibration.

Why Accurate Diagnosis Matters More with Electrical Problems

Unlike a refrigerant leak where "it's leaking somewhere" is relatively straightforward, electrical failures can have multiple root causes that produce identical symptoms.

Consider this scenario:

Your symptom: AC compressor won't engage when you press the button

Possible causes:

• Blown fuse — $5 part
• Bad relay — $20 part
• Failed pressure switch — $75 part
• Bad clutch coil — $150 part
• Wiring short — $300+ repair
• Failed control module — $500+ repair

Without methodical testing, you could waste hundreds of dollars replacing components that were never broken.

Electrical diagnosis isn't about educated guessing. It's about systematically testing circuits and components to isolate the actual failure point.

This is why repair shops charge diagnostic fees for electrical issues. They're paying for the technician's knowledge and the specialized equipment needed to avoid expensive trial-and-error parts replacement.

DIY or Professional: How to Decide

Good Candidates for DIY Repair

• Fuse replacement
• Relay replacement and testing
• Accessible blower motor resistor replacement
• Relay swapping to identify failures

Better Handled by Professionals

• Wiring diagnosis and repair
• Pressure switch replacement (requires refrigerant handling certification)
• Clutch coil replacement (if compressor access is difficult)
• Control module diagnosis, replacement, and programming
• Any repair requiring AC system evacuation and recharge

The decision usually comes down to this: Do you have a multimeter and the knowledge to use it effectively?

Electrical work doesn't require expensive specialty tools. But it does require understanding how to test for voltage, continuity, and ground connections.

Common Misconceptions About AC Electrical Problems

"If the AC light comes on, the electrical system is fine"

Not true. The AC button light only tells you the switch itself is working. The compressor still might not engage due to a bad relay, failed pressure switch, or broken clutch coil.

"A clicking relay means it's working properly"

Not necessarily. A relay can make the clicking sound but fail to make proper internal electrical contact. Always verify that power actually reaches the compressor clutch after the relay activates.

"Bypassing the pressure switch fixes the AC"

Temporarily bypassing a pressure switch can help you diagnose whether it's failed. But it's not a repair.

Pressure switches protect expensive components from damage. Running the system without them risks destroying the compressor.

"Electrical problems are always cheaper than mechanical ones"

Usually true, but not always. A failed AC control module or extensive wiring damage can actually cost more than replacing the compressor in some cases.

Frequently Asked Questions

How do I know if my AC problem is electrical or mechanical?

Key signs pointing to electrical failure:

• The compressor clutch doesn't engage at all
• Everything works or nothing works—binary, all-or-nothing behavior
• The problem started suddenly with no gradual performance decline
• You hear relays clicking but nothing happens afterward

Mechanical problems usually involve gradual cooling loss, unusual noises from the compressor area, or the compressor running but failing to build pressure.

Can I drive with a bad AC relay?

Yes, safely. A bad AC relay only affects your air conditioning system. It won't prevent the vehicle from running normally or create any safety issues.

You'll just be driving without cold air.

Why does my AC work sometimes but not others?

Intermittent operation typically suggests:

• A loose electrical connection that makes contact when you hit bumps
• A relay sticking intermittently
• A pressure switch operating right at the cutoff threshold
• A failing clutch coil that works when cold but stops working when hot

Intermittent problems are the most frustrating to diagnose because they're nearly impossible to replicate consistently during testing.

Will a blown AC fuse keep blowing if I replace it?

If the fuse blows immediately when you install a new one, you have a short circuit somewhere in the AC electrical system.

Don't keep replacing fuses. You need professional diagnosis to find the location of the short. Repeatedly replacing fuses can cause additional damage or create a fire hazard.

Can I replace my AC relay with any relay that fits?

No. While many vehicles use the same physical relay design for multiple systems, you must use a relay with the correct amperage rating.

Using an incorrect relay can cause AC system malfunction or create a fire hazard.

How much does AC electrical diagnosis cost?

Most repair shops charge $75 to $150 for electrical diagnosis. This typically includes circuit testing, checking components with diagnostic equipment, and reading any computer error codes.

Complex electrical problems might require additional diagnosis time beyond the initial hour.

Do I need to recharge my AC after replacing electrical components?

Not usually. Replacing fuses, relays, or the clutch coil doesn't require opening the refrigerant system.

However, if a pressure switch needs replacement, the system must be evacuated and recharged. This adds $200 to $400 to the total repair cost.

Final Takeaway

AC electrical problems are often simpler and less expensive to fix than mechanical compressor failures or major refrigerant leaks. But they require methodical, systematic diagnosis.

Before paying for repairs, make sure you understand:

1. Which specific component has failed (don't accept "electrical problem" as a complete diagnosis)
2. Why it failed (a blown fuse points to a deeper issue)
3. Whether other components need replacement at the same time (a failed clutch coil might indicate broader compressor problems)
4. The total repair cost including both parts and labor

Start with the simple, inexpensive possibilities: Check fuses. Test relays. Verify power is reaching the compressor clutch. Many AC electrical problems resolve with a $20 part and 10 minutes of careful work.

For complex issues—intermittent failures, suspected wiring damage, or control module problems—professional diagnosis saves money in the long run. You'll pay for one hour of diagnostic time instead of hundreds in unnecessary parts.

Remember: an electrical problem doesn't mean your entire AC system is failing. It usually means one specific component stopped doing its job.

Find that component, replace it, and your cold air returns.
